Resource Aggregation

Resource aggregation is a fleet simplification option in HOPE. It is used when a case contains many generators or storage resources that are similar enough to be grouped, and solving the fully disaggregated model would be unnecessarily slow or memory-intensive. In high-level terms, resource aggregation reduces model size by combining similar resources into a smaller set of representative rows, while trying to preserve the characteristics that matter for planning and operations.

This functionality is most useful when users want to accelerate large GTEP or PCM cases, compare alternative aggregation strategies, or study how much model fidelity is lost when detailed fleets are simplified. It is especially relevant when the original fleet contains many same-zone, same-technology resources, but some of those resources still differ in costs, flexibility, outages, emissions, or commitment behavior. The aggregation methods below are designed to let users control how aggressively HOPE simplifies those fleets and which features should be preserved.

HOPE keeps the high-level aggregation switch in HOPE_model_settings.yml:

resource_aggregation: 1

When resource_aggregation = 1, HOPE reads the advanced controls from:

Settings/HOPE_aggregation_settings.yml

This keeps HOPE_model_settings.yml short while moving the method details into a separate advanced settings file.

Aggregation Design

HOPE now treats resource aggregation as two aggregation methods:

basic
feature_based

For PCM with unit commitment, there is one additional internal UC treatment:

clustered_thermal_commitment: 0/1

That PCM switch is not a separate aggregation method. It only changes how aggregated thermal UC resources behave after the grouping step.

Common Settings

A typical HOPE_aggregation_settings.yml starts from:

write_aggregation_audit: 1        # 1 write aggregation audit CSVs into output/; 0 disable

# basic = keyed aggregation only
# feature_based = keyed aggregation, then split large groups using clustering features
aggregation_method: basic

# Existing resources are only grouped when all listed fields match.
grouping_keys:
  - Zone
  - Type
  - Flag_RET
  - Flag_mustrun
  - Flag_VRE
  - Flag_thermal

# Additional grouping keys used only in PCM.
pcm_additional_grouping_keys:
  - Flag_UC

# PCM internal UC treatment for aggregated thermal resources.
# 1 = aggregated thermal UC rows track unit counts
# 0 = aggregated thermal UC rows behave like single averaged units
clustered_thermal_commitment: 1

# Numeric columns used only when aggregation_method: feature_based
clustering_feature_columns:
  - Cost (\$/MWh)
  - FOR
  - CC
  - AF
  - RU
  - RD
  - Pmax (MW)
  - Pmin (MW)

# Approximate number of original resources per feature-based cluster.
clustering_target_cluster_size: 4

# Maximum number of feature-based clusters created inside one keyed group.
# 0 = no cap
clustering_max_clusters_per_group: 4

# 1 = z-score normalize clustering features before clustering
# 0 = use raw feature values
normalize_clustering_features: 1

# If empty, all technologies are eligible for aggregation.
aggregate_technologies: []

# Technologies kept fully separate even when resource_aggregation: 1
keep_separate_technologies: []

Audit Outputs

When write_aggregation_audit: 1, HOPE writes:

resource_aggregation_mapping.csv
resource_aggregation_summary.csv
resource_aggregation_af_summary.csv in GTEP when generator AF aggregation is available

These outputs let users check:

which original resources were merged into each aggregated resource
how large each aggregated group is
how the aggregated parameters changed after merging

Method 1: Basic Aggregation

Focus

basic aggregation is the default structured aggregation method.

Mechanism

HOPE forms groups using:

grouping_keys
pcm_additional_grouping_keys in PCM
aggregate_technologies
keep_separate_technologies

Then HOPE merges each keyed group using technology-family-aware averaging rules already implemented in the input readers.

Interpretation

basic aggregation is:

transparent
fast
easy to audit

But it can blur important within-group heterogeneity if many different resources share the same keyed group.

Recommendation

Use basic aggregation when:

the fleet is already fairly template-driven
you mainly want a smaller model
you want the most stable and fastest aggregated run

Method 2: Feature-Based Aggregation

Focus

feature_based aggregation is designed for cases where keyed groups are still too heterogeneous.

Mechanism

HOPE first forms the same keyed groups used by basic aggregation. Then, inside each sufficiently large keyed group, it:

builds a numeric feature matrix from clustering_feature_columns
optionally normalizes those features
splits the keyed group into smaller sub-clusters
aggregates each sub-cluster separately

So the final aggregated fleet stays smaller than the original model, but it keeps more operational and planning structure than basic.

Interpretation

feature_based aggregation is best thought of as:

still an aggregation method
but a similarity-aware one instead of a pure keyed merge

Its quality depends on the feature list. If an important hidden driver is omitted from clustering_feature_columns, the result can still differ from the original model.

Recommendation

Use feature_based aggregation when:

keyed groups contain clear internal heterogeneity
you want a better accuracy/runtime tradeoff than basic
you know which numeric features are most important for the study

PCM Internal Option: Clustered Thermal Commitment

clustered_thermal_commitment only matters in PCM when:

resource_aggregation = 1
unit_commitment != 0
aggregated thermal UC rows exist

When it is on, aggregated thermal UC resources keep:

NumUnits
ClusteredUnitPmax (MW)
ClusteredUnitPmin (MW)

and the PCM UC variables count online/startup/shutdown units instead of using a single on/off unit for the aggregated row.

This can improve fidelity for thermal UC behavior, but it does not change how resources are grouped. The grouping method is still chosen by aggregation_method.

Comparison Example: GTEP

Saved comparison cases:

ModelCases/MD_GTEP_clean_case_methods_original
ModelCases/MD_GTEP_clean_case_methods_basic
ModelCases/MD_GTEP_clean_case_methods_feature

Settings used in this example:

original
- resource_aggregation: 0
basic

aggregation_method: basic
grouping_keys:
  - Zone
  - Type
  - Flag_RET
  - Flag_mustrun
  - Flag_VRE
  - Flag_thermal
clustering_feature_columns:
  - Cost (\$/MWh)
  - FOR
  - Pmax (MW)
  - Pmin (MW)
clustering_target_cluster_size: 4
clustering_max_clusters_per_group: 6

feature

aggregation_method: feature_based
grouping_keys:
  - Zone
  - Type
  - Flag_RET
  - Flag_mustrun
  - Flag_VRE
  - Flag_thermal
clustering_feature_columns:
  - Cost (\$/MWh)
  - FOR
  - Pmax (MW)
  - Pmin (MW)
clustering_target_cluster_size: 4
clustering_max_clusters_per_group: 6

These cases were built to create:

within-group cost and outage heterogeneity that feature_based can partially preserve
hidden capacity-credit heterogeneity that is not in the feature list

So all three methods differ:

Case	Aggregation	Aggregated Resources	Total Cost ($)	Solve Time (s)
`original`	none	`231`	`5.299e9`	`9.01`
`basic`	keyed merge	`21`	`5.212e9`	`3.49`
`feature`	keyed + feature-based split	`40`	`5.273e9`	`3.11`

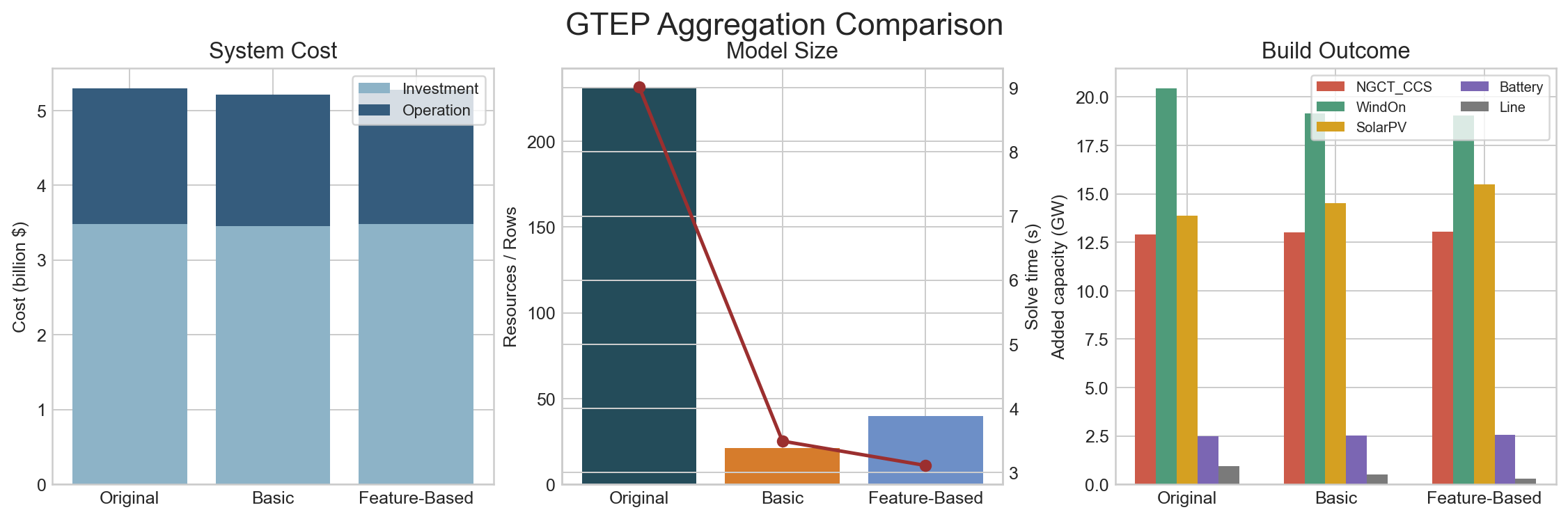

GTEP aggregation comparison

Useful files:

ModelCases/MD_GTEP_clean_case_methods_original/output/system_cost.csv
ModelCases/MD_GTEP_clean_case_methods_basic/output/system_cost.csv
ModelCases/MD_GTEP_clean_case_methods_feature/output/system_cost.csv
ModelCases/MD_GTEP_clean_case_methods_basic/output/resource_aggregation_summary.csv
ModelCases/MD_GTEP_clean_case_methods_feature/output/resource_aggregation_summary.csv

Interpretation:

basic is the most compressed and gives the lowest cost in this benchmark
feature keeps more structure than basic, so it lands between basic and original
both aggregated methods remain much smaller than the original case

Comparison Example: PCM

Saved comparison cases:

ModelCases/MD_PCM_Excel_case_aggmethods_1month_original
ModelCases/MD_PCM_Excel_case_aggmethods_1month_basic
ModelCases/MD_PCM_Excel_case_aggmethods_1month_feature

Settings used in this example:

original
- resource_aggregation: 0
basic

aggregation_method: basic
grouping_keys:
  - Zone
  - Type
  - Flag_mustrun
  - Flag_VRE
  - Flag_thermal
pcm_additional_grouping_keys:
  - Flag_UC
clustered_thermal_commitment: 1
clustering_feature_columns:
  - Cost (\$/MWh)
  - FOR
  - RU
  - RD
  - RM_SPIN
  - Start_up_cost (\$/MW)
  - Min_down_time
  - Min_up_time
  - Pmax (MW)
  - Pmin (MW)
clustering_target_cluster_size: 2
clustering_max_clusters_per_group: 6

feature

aggregation_method: feature_based
grouping_keys:
  - Zone
  - Type
  - Flag_mustrun
  - Flag_VRE
  - Flag_thermal
pcm_additional_grouping_keys:
  - Flag_UC
clustered_thermal_commitment: 1
clustering_feature_columns:
  - Cost (\$/MWh)
  - EF
  - FOR
  - RU
  - RD
  - RM_SPIN
  - Start_up_cost (\$/MW)
  - Min_down_time
  - Min_up_time
  - Pmax (MW)
  - Pmin (MW)
clustering_target_cluster_size: 2
clustering_max_clusters_per_group: 6

This one-month benchmark was built to combine:

operational heterogeneity that feature_based can see
emissions heterogeneity that becomes important under a binding carbon cap
a binding carbon cap
network and reserve constraints
enough capacity that load shedding is effectively eliminated, so the comparison is driven by operating economics rather than scarcity penalties

So all three methods differ:

Case	Aggregation	Aggregated Resources	Total Cost ($)	Solve Time (s)
`original`	none	`285`	`7.4425e7`	`77.49`
`basic`	keyed merge	`33`	`7.7976e7`	`16.29`
`feature`	keyed + feature-based split	`92`	`7.4525e7`	`34.70`

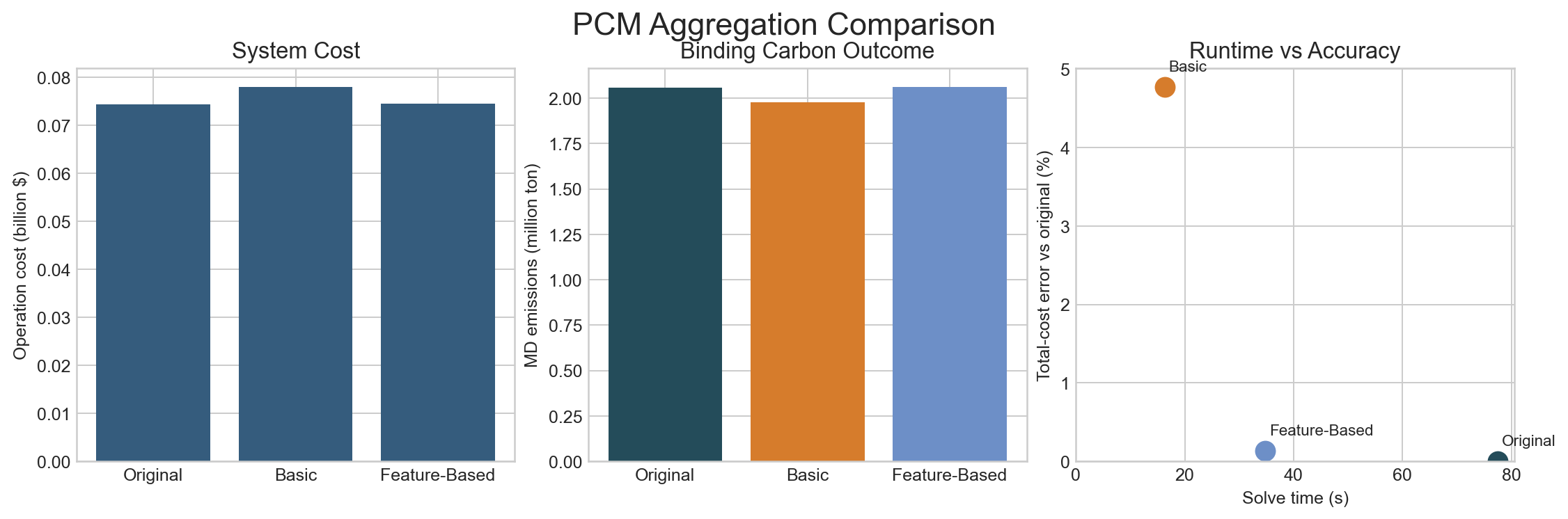

PCM aggregation comparison

Useful files:

ModelCases/MD_PCM_Excel_case_aggmethods_1month_original/output/system_cost.csv
ModelCases/MD_PCM_Excel_case_aggmethods_1month_basic/output/system_cost.csv
ModelCases/MD_PCM_Excel_case_aggmethods_1month_feature/output/system_cost.csv
ModelCases/MD_PCM_Excel_case_aggmethods_1month_basic/output/resource_aggregation_summary.csv
ModelCases/MD_PCM_Excel_case_aggmethods_1month_feature/output/resource_aggregation_summary.csv

Interpretation:

basic and feature_based are both much faster than the original PCM case
basic is the fastest PCM option here, but it is also the farthest from the original result
after adding EF to clustering_feature_columns, feature_based becomes clearly closer to the original than basic
feature_based is still not exact, which is useful: it shows that aggregation quality improves when the feature set includes the true binding drivers, but it still depends on how much structure is compressed

For this revised PCM example:

all three cases have 0 load shedding
original MD emissions are about 2.059e6 ton
basic shifts that to about 1.978e6 ton
feature_based lands at about 2.062e6 ton

So the comparison now shows the intended message more clearly:

basic is the strongest size reduction and the fastest solve
feature_based is a better fidelity/runtime compromise when the feature set is chosen well
because scarcity is removed, the differences now reflect dispatch and carbon-constraint behavior rather than emergency unmet load

Default Aggregation Setting

For most users, the recommended default is:

resource_aggregation: 1

in HOPE_model_settings.yml, together with:

write_aggregation_audit: 1
aggregation_method: basic
grouping_keys:
  - Zone
  - Type
  - Flag_RET
  - Flag_mustrun
  - Flag_VRE
  - Flag_thermal
pcm_additional_grouping_keys:
  - Flag_UC
clustered_thermal_commitment: 1
clustering_feature_columns:
  - Cost (\$/MWh)
  - FOR
  - CC
  - AF
  - RU
  - RD
  - Pmax (MW)
  - Pmin (MW)
clustering_target_cluster_size: 4
clustering_max_clusters_per_group: 4
normalize_clustering_features: 1
aggregate_technologies: []
keep_separate_technologies: []

Interpretation:

start from aggregation_method: basic
stay with basic when the keyed groups already look fairly homogeneous in the parameters that matter for the study
use the keyed grouping first
keep audit outputs on
in PCM, keep clustered_thermal_commitment: 1 as the default internal UC treatment for aggregated thermal rows
add EF to clustering_feature_columns when emissions are likely to be a binding driver
only switch to feature_based after checking whether the keyed groups are still too heterogeneous for the study objective

Practical Workflow

Start with resource_aggregation: 1 and aggregation_method: basic.
Check the audit outputs to see which keyed groups are large or heterogeneous.
If needed, switch to aggregation_method: feature_based.
Tune clustering_feature_columns so they reflect the study objective.
In PCM with UC, decide separately whether clustered_thermal_commitment should stay on.

References

The current HOPE resource aggregation design was informed by the following literature and software documentation.

PyPSA documentation, "Network Clustering." https://docs.pypsa.org/v1.1.1/user-guide/clustering/
GenX.jl documentation, "Model Configuration." https://genxproject.github.io/GenX.jl/stable/UserGuide/modelconfiguration/
GenX.jl documentation, "Workflow." https://genxproject.github.io/GenX.jl/stable/User_Guide/workflow/
Bernardo A. Knueven, James Ostrowski, and Jean-Paul Watson, "On mixed-integer programming formulations for the unit commitment problem," INFORMS Journal on Computing, 2020. https://www.osti.gov/pages/biblio/1421648
Michael Koller and Johannes Hofmann, "Efficient clustering of identical generating units for the MILP unit commitment problem," Computers & Chemical Engineering, 2019. DOI: 10.1016/j.compchemeng.2019.03.032
Germán Morales-España and Sergio Tejada-Arango, "Modeling the hidden flexibility of clustered unit commitment," IIT Comillas technical note. https://www.iit.comillas.edu/publicacion/revista/en/1399/Modelingthehiddenflexibilityofclusteredunit_commitment
